|Model||49pax USCG COI Passenger|
|Location||Sarasota, Florida, United States|
|Max Draft||0.61 m|
|Fuel Tanks||2 x 150 gal|
|Fresh Water Tanks||1 x 50 gal|
|Holding Tanks||1 x 50 gal|
Alpha Catamarans out of Sarasota Florida are building these high-speed passenger catamarans one at a time.
The hull is a true ocean going, Subchapter T, US Coast Guard Certified Passenger Catamaran rated for the "Ocean" class.

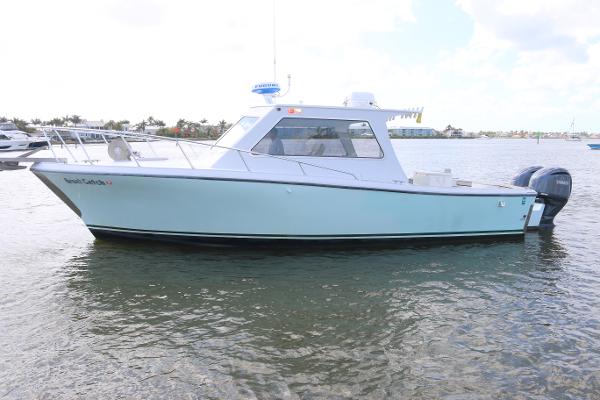

Hull #1 (sold) is pictured and is powered with twin Mercury 150's. Pricing will vary widely for each build due to component pricing and availability.
The hull is rated for up to Four (Quad) 600hp Mercury engines for a total of 2,400hp if you desire to get your passengers there in a hurry!
Endless options available from our design team including a second story with controls, passenger bench seating, etc.
Our “Standard” C.O.I. vessel is designed and manufactured as a much stronger aluminum catamaran and is the higher standard for the upgraded rating for “Ocean” C.O.I.
Shallow Water Draft of less than 24"
Fuel Capacity (2) Two 150-gallon Fuel Gal Tanks = 300 Gallons total.
**Larger optional fuel tanks available as needed for larger motor hp sizes, fuel consumption and the desired distance needed to travel without refueling.
Fresh Water Tank “Capacity 2x125 Gallons”
Black Water Tank “Capacity 200 Gallons”
Above deck head with pressure fresh water lavatory
Electrical panels, navigation lights, Horn, (2) 12V batteries, Captain’s custom console, compass, (2) Tachometers, Trim, fuel gauges. swivel helm seat on a taller pedestal.
Perimeter seating including storage within.
Dual UFLEX hydraulic steering systems for our standard (2) Mercury 150 HP engines.
HULL & DECK:
Anti-skid on front deck and walkways, 40” Tall Aluminum Perimeter Railings with 4” maximum spacing within the railing. Four (4) Boarding Gates, Sizes TBD
The overhead custom canopy covering appx 2/3rd of the deck allowing the bow area open for sunning. Other style roof available.
Motors installed and vessel totally rigged (Turn-Key)
Launched in Sarasota Bay, FL. Coast Guard tested & inspected. Completed Sea Trial & C.O.I.
Drop Down Curtains – Heavy gauge, clear sheet vinyl with canvas trim
Solid Color Sunbrella Canvas on Perimeter Railing
Custom Names, Lettering, Phone, Website, Coloring, Logos on Sunbrella Canvas Railing
Pressure Fresh Water cooling misting systems
Pressure Freshwater spray down with hose & nozzle
Spotlight remote control
Ship to Shore Power, cord with Inlet and Battery Charger
Custom “Kicker” Stereo system w/ Subs, Horns & Amps
Marine Audio - PA system with (6-speakers)
Other custom options upon request
DOUBLE DECKER Options:
To be built in the same 14’ x 24’ location in lieu of the standard canvas canopy.
It will be an all welded structure and then welded directly to the aluminum decking.
40” Tall Aluminum Perimeter Railings with 4” maximum spacing within the railing.
(1) lockable gate on each side of the upper deck. (Operable to open for jumping into the water)
Access ladder to upper deck mounted at the bow area at the center of the upper deck.
12’ Water Slide mounted in the center stern area of the upper deck (Our standard dedicated waterslide pump will send seawater to top of the slide for ease of sliding). The passengers will slide to enter the water past & between the motors area
LED “RGB” Light Colors & Package(s):
Under main overhead canopy & within passenger area.
Under deck perimeter
Exterior perimeter sections (TBD)
