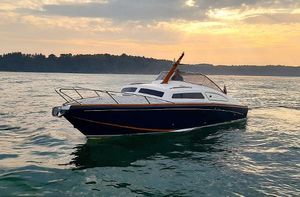

Levi Corsair 27

Construction

RCD Status: The yacht conforms with the essential safety requirements of Directive 94/25EC or RCDII (2013/53/EU as appropriate (Recreational Craft Directive) and is categorised A – “Ocean” (or Cat B – whichever is appropriate)



Hull, Deck & Superstructure Construction:

• Hull & deck in GRP & GRP/PVC foam sandwich.
• Painted non-slip deck finish.
• Varnished mahogany toe rail.
• Stainless steel and raw teak grating to swim platform.
• Cockpit coaming.
• Laid teak on laminate sole.
• LOD: 27' / 8.23m.
• Antifouled and polished (2023-2024).
• Re-varnished externally (2023-2024).
• Transom shields stripped, serviced, paint removed, primed, repainted (2022-2023).

Machinery

Engine & Gearboxes:

• 2 x Volvo KAD43 turbo/super charged diesels, developing 230HP @ 3900RPM each.
• 3.6 litre displacement, six-cylinder block, supercharged and turbocharged, with aftercooler.
• 2 x Volvo DuoProp DP-E stern drives with aluminium contra-rotating propellors.



Maintenance & Performance:

• Major off boat bench engine service 2022-2023.
• Both engines and drives removed from boat (2022-2023).
• All engine ancillaries removed, inspected (2022-2023).
• Re-sprayed with thick layer of corrosion resistant paint (2022-2023).
• Oil and water coolers stripped, cleaned, serviced, painted (2022-2023).
• 2 x new turbos (2022-2023).
• 2 x new exhaust elbows (2022-2023).
• New belts (2022-2023).
• Many new pulleys (2022-2023).
• New belt tensioners (2022-2023).
• 1 x New mechanical fuel pump (2022-2023).
• New electrical units (2022-2023).
• 1 x New supercharger pulley (2022-2023).
• 2 x New electronic control box (2022-2023).
• 2 x New starter motors (2022-2023).
• 2 x New alternators (2022-2023).
• Full service (2022-2023).
• Drives both stripped, serviced, rebuilt (2022-2023).
• New stainless Dual Props (2022-2023).
• New rubbers installed (2022-2023).
• Engine bay thoroughly cleaned and resprayed (2022-2023).



Propulsion & Steering:

• Hydraulic power-assisted steering.
• Hydraulic cast aluminium trim tabs with indicator instruments.
• New throttle and gear cables (2022-2023).
• New hydraulic steering pipes (2022-2023).
• New power steering pump (2022-2023).
• Levi-badged wheel.
• Dash at helm; engine controls and gauges.
• Morse throttles.
• 2 x Trim tabs.
• 2 x Pairs 19 in Solas stainless steel dual props (2023).

Electrical Systems

Voltage Systems:

• 12V ships battery system.
• 12V switching panel at starboard of saloon/dinette.



Battery Banks:

• Starting batteries (2023).
• House batteries (2023).



Battery Chargers:

• 230V automatic battery charger.



Alternators:

• 14V/60A alternator to each engine.



Shore Power:

• 220V Shore power socket.

Plumbing Systems

Fresh Water & Water Heating System:

• Hot and cold pressurized water.
• Water heating by immersion and 230V calorifier.



Bilge Pumps:

• Automatic and manual bilge pumps.

Tankage

Fuel:

• Fuel capacity 119 Gal/540 L in single unbaffled fuel tank.



Fresh Water:

• Water capacity 44 Gal/200 L.

Navigation Equipment

• Raytheon chart plotter.
• Ritchie high speed steering compass.
• VDO analogue/digital speed log.
• VDO analogue/digital depth sounder.
• ICOM VHF radio.

Domestic Equipment

Heads/Showers:

• 1 x WC.
• Swim shower.



Heating & Ventilation:

• Chromed engine space vents port and starboard.
• 2 x Stainless steel Vetus type deck vents.
• 2 x Fixed port-lights and 2 x forward glazed windows.



Lighting:

• Chromed stern light.
• Courtesy lights.

Accommodation

Summary of Accommodation:

• Open plan cabin with twin V-berths.
• Dinette seating to starboard with table, converting to occasional double berth.
• Shower and toilet compartment to starboard.
• Forward galley area to port - fitted out with highly polished black granite.
• Teak and holly sole.
• Veneered African Walnut finish.
• Downlights in deckhead.
• 2 x Steps down from companionway.



Description of layout:   WC/Shower Compartment to Port:

• Electric toilet.
• Raw teak grating shower well.
• Marble top surface.
• Sliding doors locker outboard.
• Ceramic inset sink.
• Mixer tap.
• Self-stowing shower head.
• Towel rail.
• Downlights in deckhead.



Dinette/Seating/Berth Area to Starboard:

• Fore and aft facing upholstered seats.
• Table.
• Table lowers to become berth base.
• Lockers under and outboard.



Galley to Port:

• Black marble top.
• Sliding doors locker outboard.
• Ceramic inset sink.
• Mixer tap.
• Lockers under.



V-berths Forward:

• Stowage under.
• Lockers port and starboard.
• Speaker port and starboard.
• Circular hatch in deckhead.

Deck Equipment

General:

• Chromed ensign staff socket.
• 3 x Flush locker hatches.
• Footrests port and starboard.
• Small locker and stainless-steel grab rail to port.
• Double louvred teak companionway doors.
• Strut controlled laminate lifting hatch.
• Wrap round smoked windscreen.
• Bimini/sprayhood with stainless steel frame.
• Raked wooden mast; nav lights and antennae.
• Teak and chromed grab rails port and starboard.
• Circular alloy and smoked acrylic hatch.
• Stainless steel pulpit.
• 2 x Door flush hatch over chain locker.



Anchoring & Mooring Equipment:

• Chromed mooring cleats port and starboard.
• Lofrans progress 1 windlass.
• Stainless steel Bruce type anchor.
• Anchor stowed in stainless steel launcher.
• Up and down anchor controls.
• Stainless steel swivel.
• Stainless steel chain.
• Mooring lines.
• Fenders.



Covers, Canvas & Cushions:

• Aft upholstered seating over engine space.
• Upholstered backrests.
• Helm seat to starboard; identical seat to port.

Safety Equipment

Fire-Fighting Equipment:

• Fire extinguisher in cockpit (service date unverified).
• Auto fire extinguisher in engine space (service date unverified).



Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
