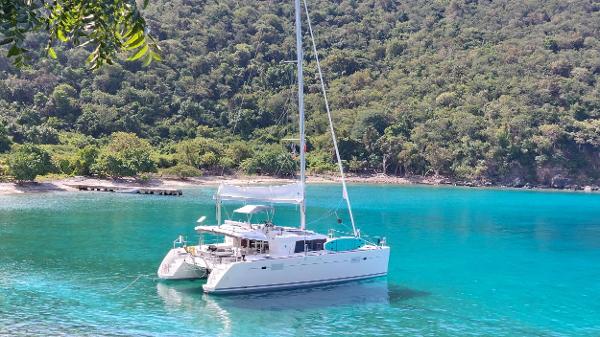

Lagoon 450

Construction

• Polyester and high quality anti-osmotic resin
• Hull and deck laminated by infusion
• Balsa core hull, solid laminate under water line, white gel coat
• Balsa core bridge deck and deck
• Laminated marine plywood bulkheads

Sails and Rigging

SAILS

• 1 high roach mainsail in Dacron with battens and LAGOON logo, 2 straps
• 1 genoa in Dacron with UV protective band, 1 strap

RIGGING

• Tripod aluminium mast with mainsail track and ball-bearing
• Aluminium boom
• 2 encased shrouds
• 1 Genoa forestay with manual furler
• 2 Lazy-jacks for the mainsail
• Deck light on the mast

RUNNING RIGGING

• 1 Double purchase spectra mainsail halyard
• 1 Spectra Genoa halyard
• 1 Mainsail sheet pre-stretched
• 2 Genoa sheets pre-stretched
• 1 Boom topping lift
• 3 Reefing lines (1st dynema)
• 1 Genoa furling line pre-stretched
• 2 Mainsail traveller car control lines pre-stretched

Hardware

• 3 Manual winches 60.2 STA (mainsail)
• Genoa tracks with genoa car and stopper
• Anodized aluminium crossbeam with mooring point for the genoa furler, anchor roller and navigation lights

Mooring

• Composite longitudinal crossbeam with avec integrated chain run and forestay chain plate
• 8 mooring cleats
• 1700W 12V electrical windlass with vertical axe, gypsy (chain 12mm) and wireless remote in the anchor locker
• Access to the windlass and to the anchor locker through a vertical hatch

Engine

• 2 Diesel engines YANMAR 4JH57 (57HP) Sail-Drive
• 3 Blades fixe propeller
• Sea water filter
• Mechanical engine throttles at the helm station
• Ventilation of the engine compartment : electrical extraction in the aft transom
• Sound-proofing of the engine compartment
• Fuel circuit : - 2 aluminium tanks of 2 x 520 litres - Fuel filter systems - Fuel shut off valve  - Gauge at the general control panel

Plumbing

Fresh water circuit:

• Fresh water tank : 2 x 175L with gauge at the chart table
• Fresh water circuit with 1 main water group in the port companionway
• 60L electric water heater, 220V/engine exchange

Grey water:

•  Shower and washbasin drain to grey water tank and automatic pump
• Galley sinks drain directly overboard

Black water:

4 tanks 80L (total 320L)

Bilge pump circuit:

• 1 manual bilge pump in each hull with cockpit pump
• 1 automatic immersed bilge pump by hull
• 1 manual release non-immersed bilge pump by hull

Electrics

Power circuit:

• 2 Alternators 12V 80A
• 2 Start batteries 12V 110A
• 3 Service batteries 12V 140Ah Batteries breaker under the bed of the aft starboard cabin

Distribution Electric panel:

• 12V General distribution panel at the chart table with protection by circuit breaker
• Ammeter, voltmeter, circuit breaker, panel lighting, cigarette lighter

Lighting:

• 12V LED outside lighting
• 12V LED inside lighting
• Navigation lights LED
• 12V lighting in the engine compartment

Deck Layout

TRANSOM

• Hot/cold deck shower on starboard
• S/S telescopic swim ladder with fixe handle on starboard
• Storage on the side of the transom (port and starboard)

AFT COCKPIT

• Large cockpit usable as a deck salon, protected by a hard top bimini
•  ”U” bench on portside with storage locker  Gas locker (2 bottles of 10 kg)
• Removable polyester cockpit table 8/10 people
• Large storage locker with possibility to install option like icemaker and synthetic resin countertop
• 1 “Lazy boy” area with locker in the seat on starboard
• Waste bin with upper access and lateral door on portside
• Storage locker with top access (70 L) and evacuation  on portside
• Polyester fiddle anti-runoff on the sides of the cockpit

FLYBRIDGE

• 2 staircases to access from the deck and from the cockpit
• Large bench 6 seats
• Storage in the lateral staircase to access to the fly
• Sunbed at the front of the helm station
• Helm station with : - Covered steering wheel and  brake - Engines throttle and panel - Compass - Console for screen and instrumentation - Cup holder - Halyards storage

FORWARD COCKPIT

•  "U" seating area
• Storage locker under the portside seat - generator
• Storage locker under the portside seat
• Storage locker under the central seat
• Trampoline with nylon thread

BOW LOCKERS

• Access through  opening deck hatches with locker
• Wooden floor
• White painting
• Lighting

Interior

GENERALITIES

• Interior woodwork in Alpi blond oak plywood
• Dark brown laminated floor  (Milano)
• S/S handrail leather covered
• Fabric-covered plywood ceiling panels or fiberglass liners in cabins and wash rooms
• Fabric-covered plywood on hull liner in cabins
• Access to the cabins and bathrooms without doorstep

Standing headroom

• Salon :   2,06m
• Cabin :  2,04m
• Bathroom : 2,04 m

Mattress and Upholstery

• Marine mattresses made of multi-layer alveolar foam with several densities (tick. 130mm)
• Mattresses treatment: anti-microbial, anti-bacterial, non-allergenic, anti-dust mite
• Standard upholstery as indicated on Lagoon sample book
• Synthetic fabrics adapted to marine environment: - washable (40°C) - U.V. resistant  - water repellent, with anti-stain treatment
